2N60 N-mosfet D 600V 2A [Original] - N-Channel transistor - TO-220f package

2N60 N-Channel MOSFET 600V 2A TO-220f Power Transistor

The 2N60 is an N-Channel MOSFET. It provides a 600V drain-source voltage and a 2A continuous drain current. The TO-220f package offers thermal resistance. Advanced process technology is utilized. Fast switching capabilities are present. A 175°C maximum operating temperature is specified. The transistor is fully avalanche rated. An integrated diode simplifies circuit design. Low thermal resistance supports stable operation under power dissipation.

Specifications:

• Transistor Type: N-Channel MOSFET
• Drain-Source Voltage (Vds): 600V
• Drain Current (Id): 2A
• Power Dissipation (Pd): 54W
• Package Type: TO-220f
• Max Operating Temperature: 175°C
• Process Technology: Advanced
• Avalanche Rating: Fully Rated
• Integrated Diode: Yes

Key features and benefits:

• Advanced Process Technology
• 175°C maximum operating temperature
• Fast switching capabilities
• N-Channel Field Effect Transistor
• Fully avalanche rated
• Integrated diode
• TO-220f package with low thermal resistance

Applications:

• Switching Power Supplies
• Motor Control Circuits
• DC-DC Converters
• General Purpose Power Switching
• Commercial and Industrial Power Applications

Frequently Asked Questions:

Q: What is the package type and its thermal characteristics?
A: The 2N60 is housed in a TO-220f package, which provides low thermal resistance.

Q: Does this MOSFET include an internal diode?
A: Yes, the 2N60 N-Channel MOSFET features an integrated diode.

Q: What does "fully avalanche rated" signify for this component?
A: "Fully avalanche rated" indicates the MOSFET's ability to withstand transient voltage spikes without damage.

Q: What is the maximum operating temperature of the 2N60?
A: The maximum operating temperature for the 2N60 N-Channel MOSFET is 175°C.

Package Includes:

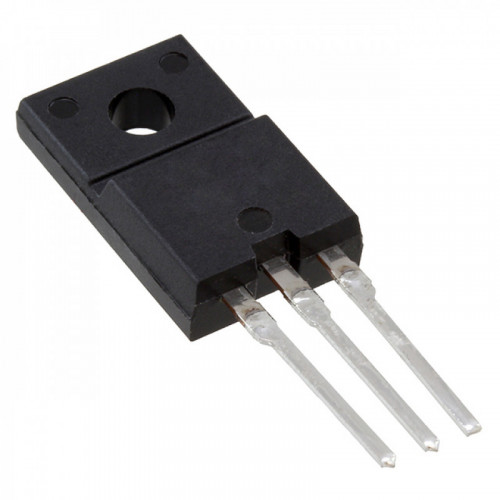

*Image shown is a representation only.
