Metal Transistor : 2N2222 NPN switching transistors - TO-18

2N2222 NPN Switching Transistor - TO-18 Metal Case

The 2N2222 is a highly reliable NPN switching transistor, housed in a robust TO-18 metal case. Engineered for optimal performance, it excels in both linear amplification and switching applications. This versatile component supports a maximum collector current of 800mA and a collector-emitter voltage of 40V. Its durable metal construction ensures longevity and stable operation in demanding environments. Ideal for hobbyists and professional engineers alike, the 2N2222 provides consistent and efficient circuit control. It's a fundamental building block for a wide range of electronic designs, from power management to signal processing. Experience superior performance with this industry-standard transistor.

Specifications:

• Transistor Polarity: NPN
• Collector Emitter Voltage V(br)ceo: 30V
• Power Dissipation Pd: 500mW
• DC Collector Current: 800mA
• DC Current Gain hFE: 100
• Transistor Case Style: TO-18
• No. of Pins: 3
• Gain Bandwidth ft Typ: 250MHz
• Termination Type: Through Hole
• Collector Base Voltage Vcbo: 60V

Key features and benefits:

• NPN Transistor Polarity for versatile circuit design
• High DC Collector Current of 800mA for power applications
• Low Collector-Emitter Voltage (max 40V) for safety and efficiency
• Durable TO-18 Metal Case Style for enhanced reliability and heat dissipation
• Optimized for both Linear Amplification and Switching applications
• High Gain Bandwidth (250MHz typical) for fast signal processing
• Excellent Power Dissipation of 500mW
• Through-Hole Termination for easy and secure PCB integration

Applications:

• General purpose switching circuits
• Linear amplification stages in audio or control systems
• Driver circuits for relays, LEDs, and motors
• Power management and regulation systems
• Oscillators and signal generation circuits
• Various signal processing applications

Package Includes:

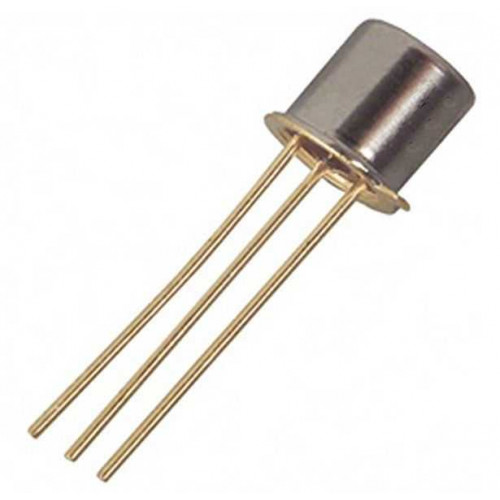

*Image shown is a representation only.
