20 Pin - Machine tooled IC Socket (Round IC Base)

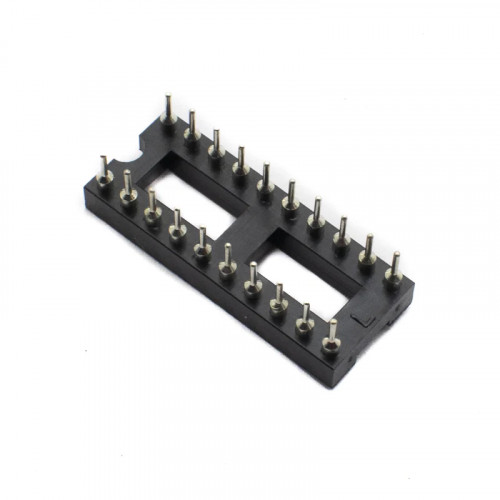

20 Pin Machine Tooled IC Socket - Round Base

The 20 Pin Machine Tooled IC Socket features a round base. This design provides secure and stable housing for integrated circuits. Precision machine-tooled contacts ensure excellent conductivity and minimal signal loss. The socket facilitates IC insertion and removal, reducing wear on component leads. It is designed for long-term reliability in electronic projects. This component supports both rapid prototyping and production environments. It provides a stable electrical connection. The socket is engineered for modern electronics applications.

Specifications:

• Pin Count: 20
• Pin Type: Machine-Tooled, Round Pin
• Mounting Type: Through-Hole
• Pin Pitch: 2.54mm
• Compliance: RoHS Compliant
• Operating Temperature: -55°C to +125°C
• Contact Material: Beryllium Copper
• Insulator Material: PBT

Key features and benefits:

• Precision machine-tooled contacts for superior durability and conductivity.
• Round pin base design provides secure IC retention.
• Facilitates IC insertion and removal, minimizing lead wear.
• High reliability with resistance to corrosion and mechanical stress.
• Precision fit ensures stable electrical connections and minimal resistance.
• Operates reliably across -55°C to +125°C.
• RoHS compliant.

Applications:

• Secure mounting of 20-pin DIP ICs in electronic circuits.
• Prototyping and development boards requiring frequent IC changes.
• Reliable replacement sockets for existing DIP ICs in repairs or upgrades.
• Microcontroller and memory applications requiring stability.
• Industrial and consumer electronics projects.

Frequently Asked Questions:

Q: What are the key electrical characteristics of the 20 Pin Machine Tooled IC Socket?
A: This socket features precision machine-tooled contacts, ensuring excellent conductivity and minimal signal loss for stable electrical connections.

Q: What is the operating temperature range for this IC socket?
A: The 20 Pin Machine Tooled IC Socket is designed for reliable operation across a temperature range of -55°C to +125°C.

Q: How does the round base design benefit IC installation and removal?
A: The round pin base design provides secure and stable housing for integrated circuits, while facilitating IC insertion and removal to minimize lead wear.

Package Includes:

*Image shown is a representation only.
