16 Pin - DIP IC Socket/Base (DIP-16pin)
- Product Code: ICS_16pin
- Availability: In Stock
-
₹3.25 (+ GST)
- 10 or more quantity/sets : ₹3.00
- 50 or more quantity/sets : ₹2.75
- 100 or more quantity/sets : ₹2.40
- 500 or more quantity/sets : ₹2.00
- Shipping Charges Start from Rs.49*
- Fast Order Processing <24hr
- Shipment using reputed courier with 90% delivery in 1 - 3 working days
- All order with GST invoice (B2B: 100% cliam GST credit input tax)

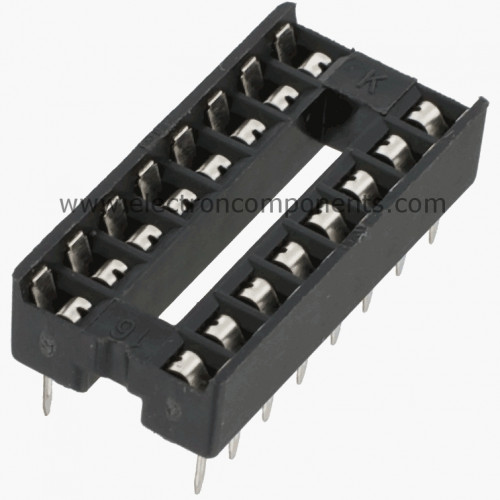

16 Pin DIP IC Socket/Base (DIP-16pin)
The 16 Pin DIP IC Socket/Base provides electrical connection for Dual In-line Package (DIP) integrated circuits. This socket prevents thermal damage to ICs during soldering. It facilitates testing and replacement of components without desoldering. Construction is black thermoplastic. Tin-plated alloy contacts provide electrical conductivity. An integrated notch aids in correct IC orientation. Sockets can be mounted end-to-end for custom configurations. This component supports prototyping and repair workflows.
Specifications:
- Pin Count: 16 pins
- Type: DIP IC Socket/Base
- Material: Black Thermoplastic
- Contact Material: Tin-plated alloy
- Overall Height above PCB: 4.8mm
- PCB Hole Required: 0.6mm
- Pitch Width: 7.62mm (0.3in)
- Pin Pitch: 2.54mm (0.1in)
- Identification Feature: Notched end
Key features and benefits:
- Protects ICs from thermal exposure during soldering
- Facilitates IC testing and replacement without desoldering
- Black thermoplastic construction
- Tin-plated alloy contacts
- Notched for IC orientation
- Supports end-to-end mounting for extended configurations
- 16-pin DIP footprint
Applications:
- Prototyping and breadboarding
- Circuit testing and debugging
- Electronic component repair and replacement
- Educational electronics projects
- Development boards and custom PCBs
Frequently Asked Questions:
Q: What is the primary function of a DIP IC socket?
A: A DIP IC socket provides an interface for Dual In-line Package integrated circuits, preventing thermal damage during soldering and enabling component replacement without desoldering.
Q: What materials are used in the construction of this 16-pin DIP socket?
A: This 16-pin DIP socket is constructed from black thermoplastic with tin-plated alloy contacts.
Q: Can multiple 16-pin DIP sockets be connected together?
A: Yes, these sockets are designed to be mounted end-to-end for custom configurations.
Package Includes:
1 x 16 Pin - DIP IC Socket/Base (DIP-16pin).*Image shown is a representation only.
Note: Contact sales(at)electroncomponents.com for bulk enquiry & get best price!
