10-Element LED Bar Graph [Red]

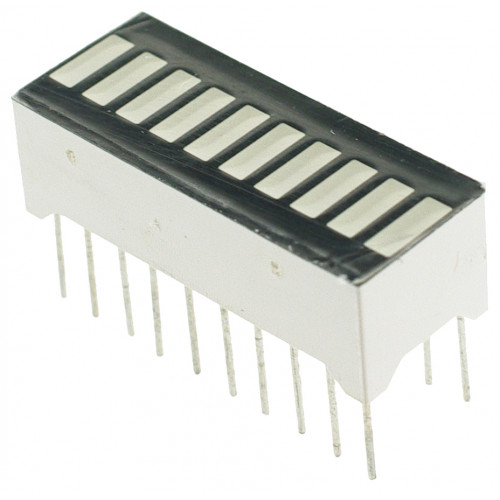

10-Element Red LED Bar Graph Display Module

The 10-Element Red LED Bar Graph Display Module incorporates ten individually controlled LED segments. It provides visual feedback for electronic projects. The module outputs red light. It is suitable for monitoring audio levels, battery status, and custom visual indicators. Its compact design facilitates integration into circuit boards. Constructed with GaAlAs material, it offers reliable performance. This module is RoHS compliant. It integrates into electronic systems.

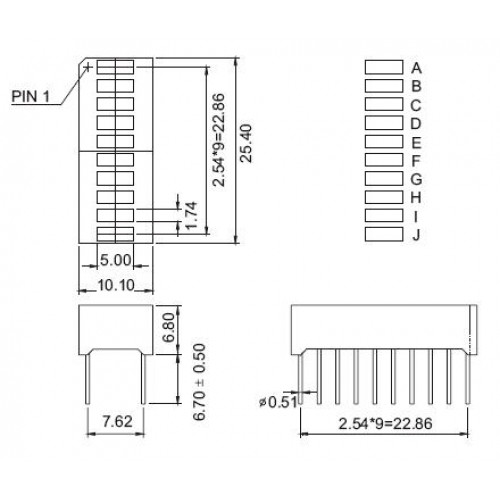

Specifications:

• LED Size: 2 x 5 mm
• LED Material: GaAlAs
• Emitted Color: Red
• Peak Wavelength: 660 nm
• Power Dissipation (Pd): 650 mW
• Forward Current (If): 25 mA
• Peak Forward Current (Ifp): 250 mA
• Forward Voltage (Typical): 1.85 V
• Forward Voltage (Maximum): 2.2 V
• Luminous Intensity (Typical): 120 mcd

Key features and benefits:

• Ten individually controlled LED segments.
• High brightness red output.
• Facilitates circuit integration.
• Constructed with GaAlAs material.
• Compact 2 x 5 mm LED size.
• RoHS compliant.

Applications:

• Audio level meters and VU meters
• Battery charge and status indicators
• Signal strength and power displays
• Custom visual feedback for embedded systems
• Educational electronics and prototyping

Frequently Asked Questions:

Q: What is the peak wavelength of the emitted red light?
A: The peak wavelength of the emitted red light is 660 nm.

Q: What is the maximum forward current for each individual LED segment?
A: The maximum forward current (If) for each individual LED segment is 25 mA.

Q: Is this module compliant with environmental directives?
A: Yes, the 10-Element Red LED Bar Graph Display Module is fully RoHS compliant.

Package Includes:

*Image shown is a representation only.
