0.1uf - 630V (100nf - 630V) - 104 Myler Capacitor - Polyester [High Quality]

0.1uF 630V (100nF) Mylar Polyester Capacitor - 104K

The 0.1uF 630V (100nF) Mylar Polyester Capacitor, designated as 104K, is a component for electronic circuits. It is designed for stability and reliability in various applications. The polyester film dielectric provides insulation resistance and a low dissipation factor. Operation is specified across a temperature range of -40°C to +105°C. Its compact dimensions facilitate integration into diverse circuit designs. The component is RoHS compliant, adhering to environmental safety standards. It is suitable for filtering, coupling, and timing circuit functions. This Mylar capacitor provides precision and durability in electronic projects.

Specifications:

• Capacitance: 0.1uF (100nF)
• Voltage Rating: 630V DC
• Tolerance: ±5% (K)
• Dielectric Material: Polyester Film (Mylar)
• Operating Temperature: -40°C to +105°C
• Capacitance Code: 104
• RoHS Compliant: Yes
• Equivalent Part Numbers: ECW-F4104JL, ECQE4104JF, BFC236855104, 104MPR630K

Key features and benefits:

• Mylar polyester film dielectric
• Capacitance tolerance of ±5%
• Operating temperature range: -40°C to +105°C
• RoHS compliant
• High insulation resistance
• Rated for 630V DC operation
• Compact form factor for integration

Applications:

• Filtering and smoothing in power supply units
• Coupling and decoupling in audio and signal processing circuits
• Timing circuits and oscillators
• Bypass applications for noise reduction
• General purpose electronics projects

Frequently Asked Questions:

Q: What is the capacitance value of this component?
A: The capacitance is 0.1uF, which is equivalent to 100nF.

Q: What is the voltage rating for this Mylar capacitor?
A: This capacitor has a voltage rating of 630V DC.

Q: What is the operating temperature range for this capacitor?
A: The operating temperature range for this component is -40°C to +105°C.

Package Includes:

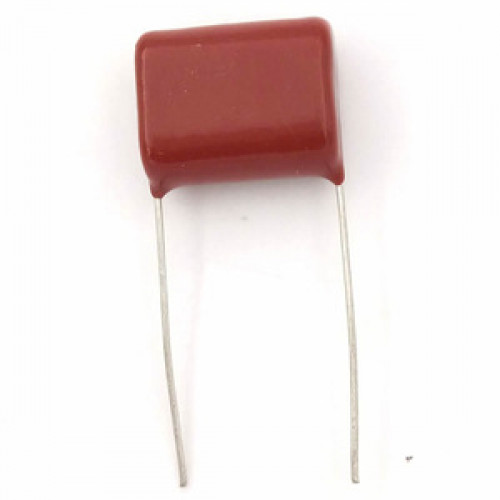

*Image shown is a representation only.
