Car Audio Tweeter 120Watts [Square] - JP-100 Piezoelectric - DAPIC (original)

Product Code: SB_TW-120-JC100
Availability: Out Of Stock

₹199.00 (+ GST)

Qty

Out of Stock

Shipping Charges Start from Rs.49*
Fast Order Processing <24hr
Shipment using reputed courier with 90% delivery in 1 - 3 working days
All order with GST invoice (B2B: 100% cliam GST credit input tax)

0 reviews / Write a review

Description
Reviews (0)

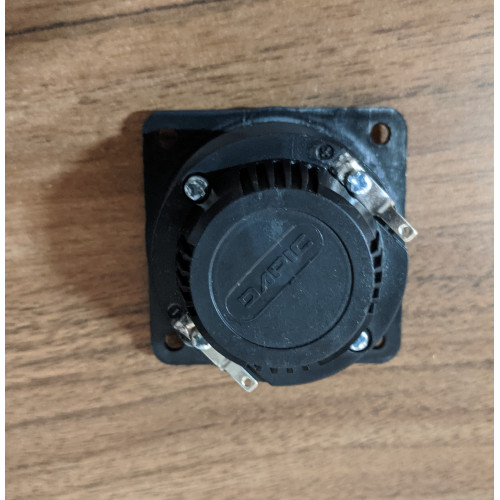

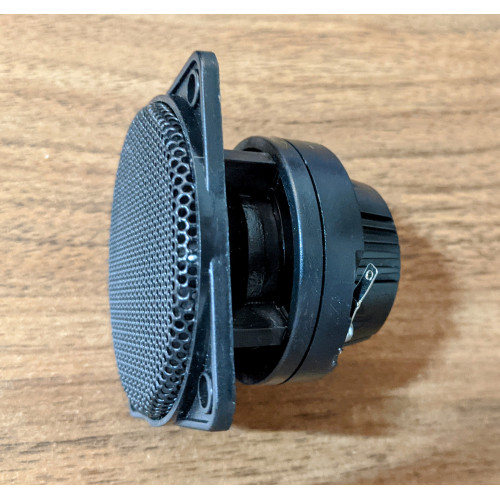

DAPIC JP-100 Square Piezoelectric Car Audio Tweeter - 120W

The DAPIC JP-100 is a square piezoelectric car audio tweeter. It reproduces high-frequency sound. This component delivers crisp, clear highs. It features a horn-type design. Real power output is 120W, with a maximum capacity of 150W. The frequency range is 5KHz to 20KHz. Sensitivity measures 105dB/W/m. Its dimensions are 2.5 inch x 2.5 inch. This component is suitable for car audio and custom projects.

Specifications:

SENSITIVITY: 105dB/W/m
REAL POWER: 120W
MAX POWER: 150W
FREQUENCY RANGE: 5KHz ~ 20KHz
MANUFACTURER: DAPIC (Original)
SHAPE: Square - Horn Type

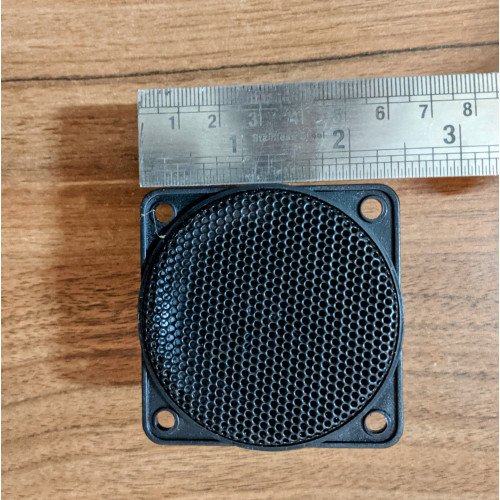

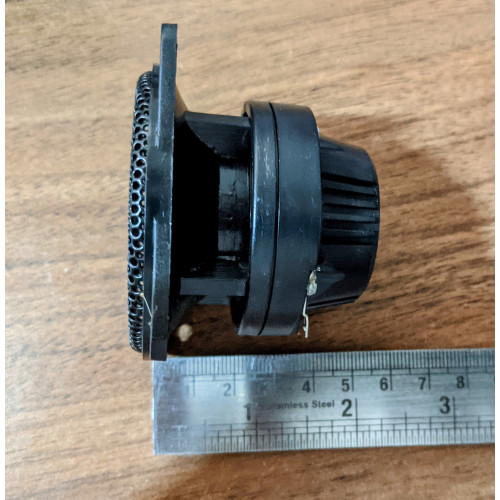

DIMENSION: 2.5 inch x 2.5 inch (approx)
TYPE: Piezoelectric Tweeter

Key features and benefits:

High-frequency sound reproduction (5KHz-20KHz)
Real power output: 120W (Max 150W)
Sensitivity: 105dB/W/m
DAPIC original piezoelectric technology
Compact 2.5-inch square, horn-type design
Suitable for car audio and general electronics

Applications:

Car Audio Speaker Systems
General Warning Alarms and Signaling Projects
Simple Amplifier and Custom Audio Builds
Robotics and Automation Projects requiring sound output

Frequently Asked Questions:

Q: What is the recommended power amplifier output for this tweeter?
A: The tweeter has a real power rating of 120W and a maximum capacity of 150W. Match with an amplifier within this range.

Q: What are the mounting dimensions for this tweeter?
A: The tweeter has a 2.5 inch x 2.5 inch square dimension.

Q: Is this tweeter suitable for outdoor applications?
A: The product description does not specify outdoor suitability. It is primarily listed for car audio and general electronics projects.

Q: Does this tweeter require a crossover network?
A: Piezoelectric tweeters often do not require a separate crossover due to their inherent impedance characteristics, but system design may vary.
