TDA7379 38W x2 Stereo Audio Amplifier

  • Product Code: ICSF_TDA7379
  • Availability: Out Of Stock
  • ₹114.41 (+ GST)


Out of Stock
  • Shipping Charges Start from Rs.49*
  • Fast Order Processing <24hr
  • Shipment using reputed courier with 90% delivery in 1 - 3 working days
  • All order with GST invoice (B2B: 100% cliam GST credit input tax)

TDA7379 : 38Wx2 Stereo Audio Amplifier

General Description
The TDA7379 is a new technology class AB audio processor amplifier able to work either in DUAL BRIDGE or QUAD SINGLE ENDED configuration. The exclusive fully complementary structure of the output stage and the internally fixed gain guarantee the highest power performances with extremely reduced component count. The on board clip detector simplifies gain compression operation. The fault diagnostic makes it possible to detect mistakes during the set assembly and wiring in the equipment

Specification/Features
  • HIGH OUTPUT POWER CAPABILITY
    2 x 38W/4Ω @18V, 1KHz, 10%
    4 x 11W/4Ω @18V, 1KHz, 10%
    2 x 20W/8Ω @18V; 1KHz, 10%
    4 x 13W/2Ω @15V, 1KHz, 10%
    2 x 34W/8Ω @ 22V, 1kHz, 10%
  • MINIMUM EXTERNAL COMPONENTS COUNT:
    – NO BOOTSTRAP CAPACITORS
    – NO BOUCHEROT CELLS
    – INTERNALLY FIXED GAIN (26dB BTL)
  • ST-BY FUNCTION (CMOS COMPATIBLE)
  • NO AUDIBLE POP DURING ST-BY OPERATIONS
  • DIAGNOSTIC FACILITIES
    – CLIP DETECTOR
    – OUT TO GND SHORT
    – OUT TO VS SHORT
    – SOFT SHORT AT TURN-ON
    – THERMAL SHUTDOWN PROXIMITY
  • Protections:
    OUPUT AC/DC SHORT CIRCUIT
    – TO GND
    – TO VS
    – ACROSS THE LOAD
  • SOFT SHORT AT TURN-ON
  • OVERRATING CHIP TEMPERATURE WITH SOFT THERMAL LIMITER
  • FORTUITOUS OPEN GND
  • REVERSED BATTERY

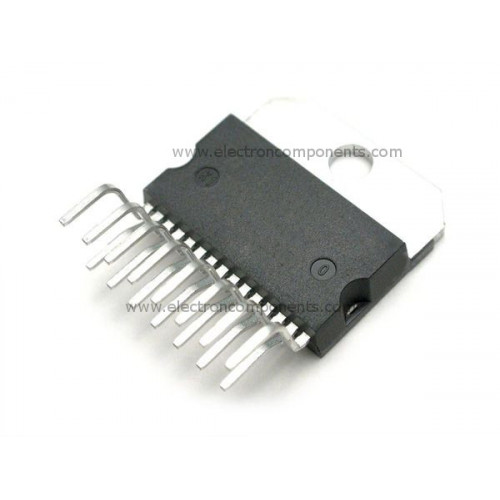

*Image shown is a representation only.
