NE555P /LM555 /SE555 Timer IC [Texas/UTC - Original] - IC OSC Single Timer 100Khz 8-DIP

  • Product Code: ICO_555
  • Availability: In Stock
  • ₹7.90 (+ GST)

  • 10 or more quantity/sets : ₹7.75
  • 25 or more quantity/sets : ₹7.50
  • 50 or more quantity/sets : ₹7.25

  • Shipping Charges Start from Rs.49*
  • Fast Order Processing <24hr
  • Shipment using reputed courier with 90% delivery in 1 - 3 working days
  • All order with GST invoice (B2B: 100% cliam GST credit input tax)
NE555P /LM555 / SE555 - Timer IC [Texas/UTC - Original]
General Description
The 555 is a highly stable device for generating accurate time delays or oscillation. Additional terminals are provided for triggering or resetting if desired. In the time delay mode of operation, the time is precisely controlled by one external resistor and capacitor. For stable operation as an oscillator, the free running frequency and duty cycle are accurately controlled with two external resistors and one capacitor. The circuit may be triggered and reset on falling waveforms, and the output circuit can source or sink up to 200mA or drive TTL circuits.

Specifications:
  • Package : Tube
  • Type: Timer/Oscillator (Single)
  • Frequency: 100kHz
  • Voltage - Supply: 4.5V ~ 16V
  • Current - Supply: 10 mA
  • Operating Temperature: 0°C ~ 70°C
  • Package / Case: 8-DIP (0.300", 7.62mm)
  • Brand: Texas Instruments / UTC (Original - based on availability)
Features
  • Timing from microseconds through hours
  • Operates in both stable and monostable modes
  • Adjustable duty cycle
  • Output can source or sink 200 mA
  • Output and supply TTL compatible
  • Normally on and normally off output
  • Available in 8-pin MSOP package
Applications
  • Precision timing
  • Pulse generation
  • Sequential timing
  • Time delay generation
  • Pulse width modulation
  • Pulse position modulation
  • Linear ramp generator

Datasheet click here

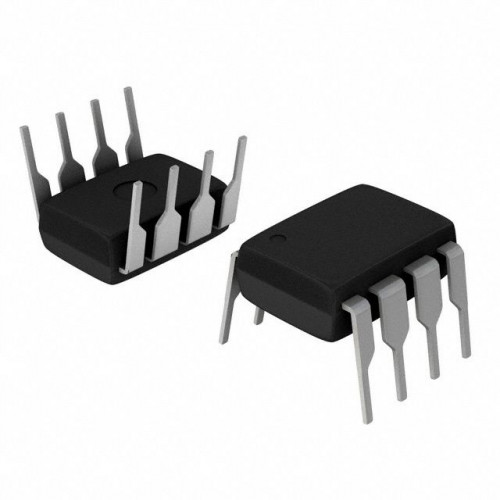

*Image shown is a representation only.
